Product Introduction

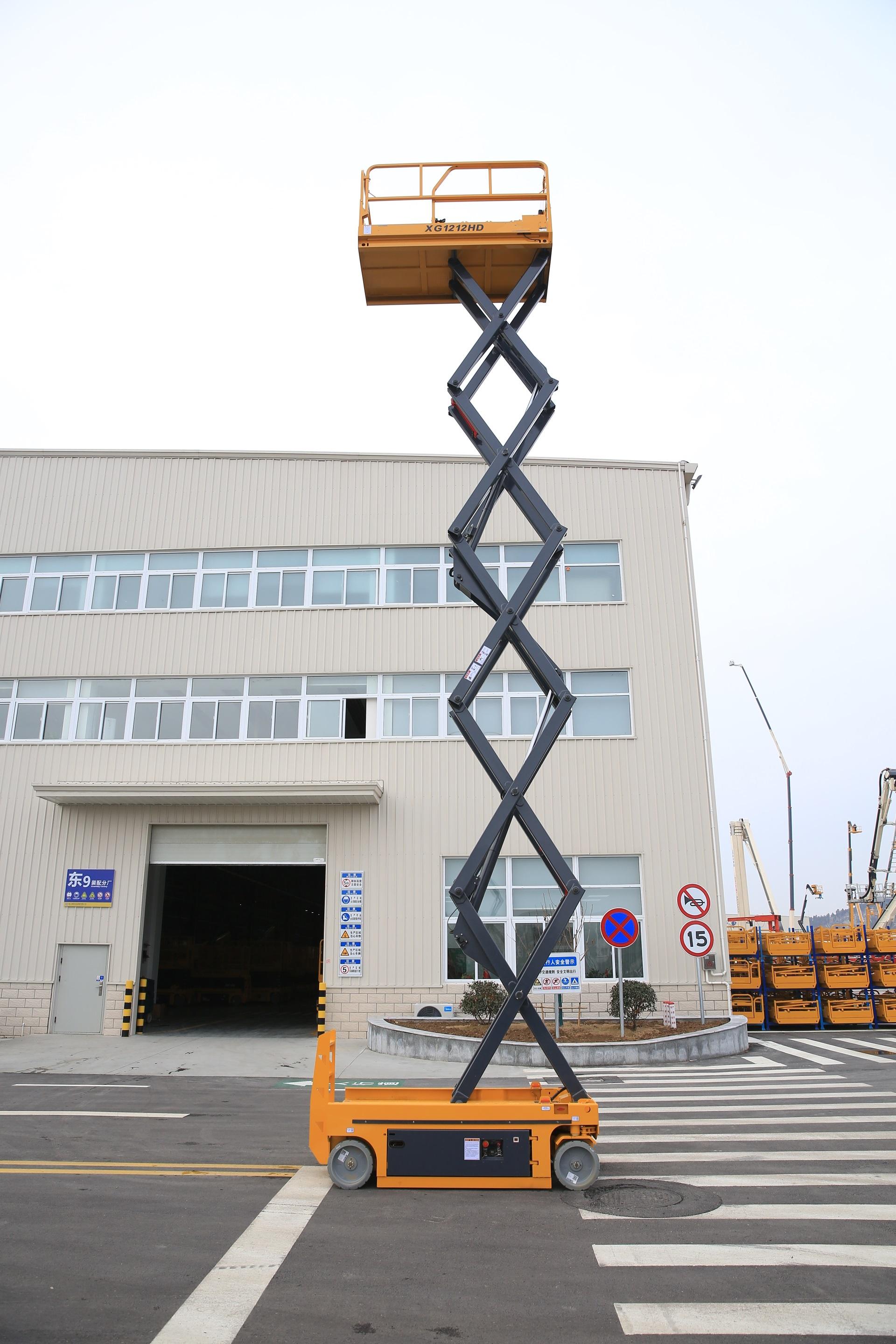

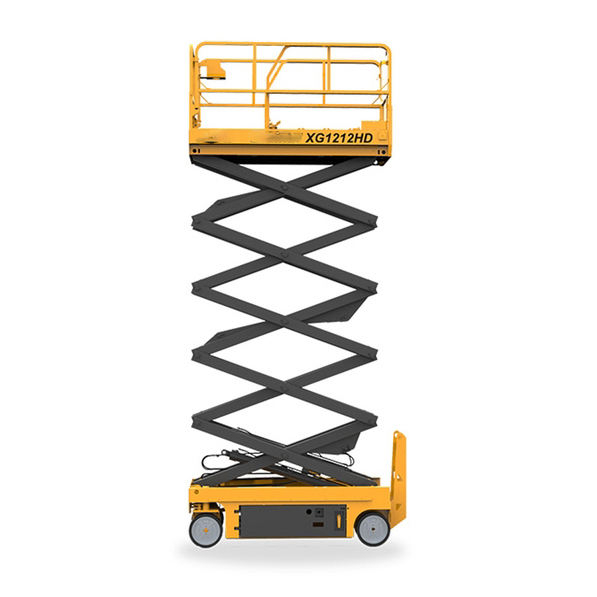

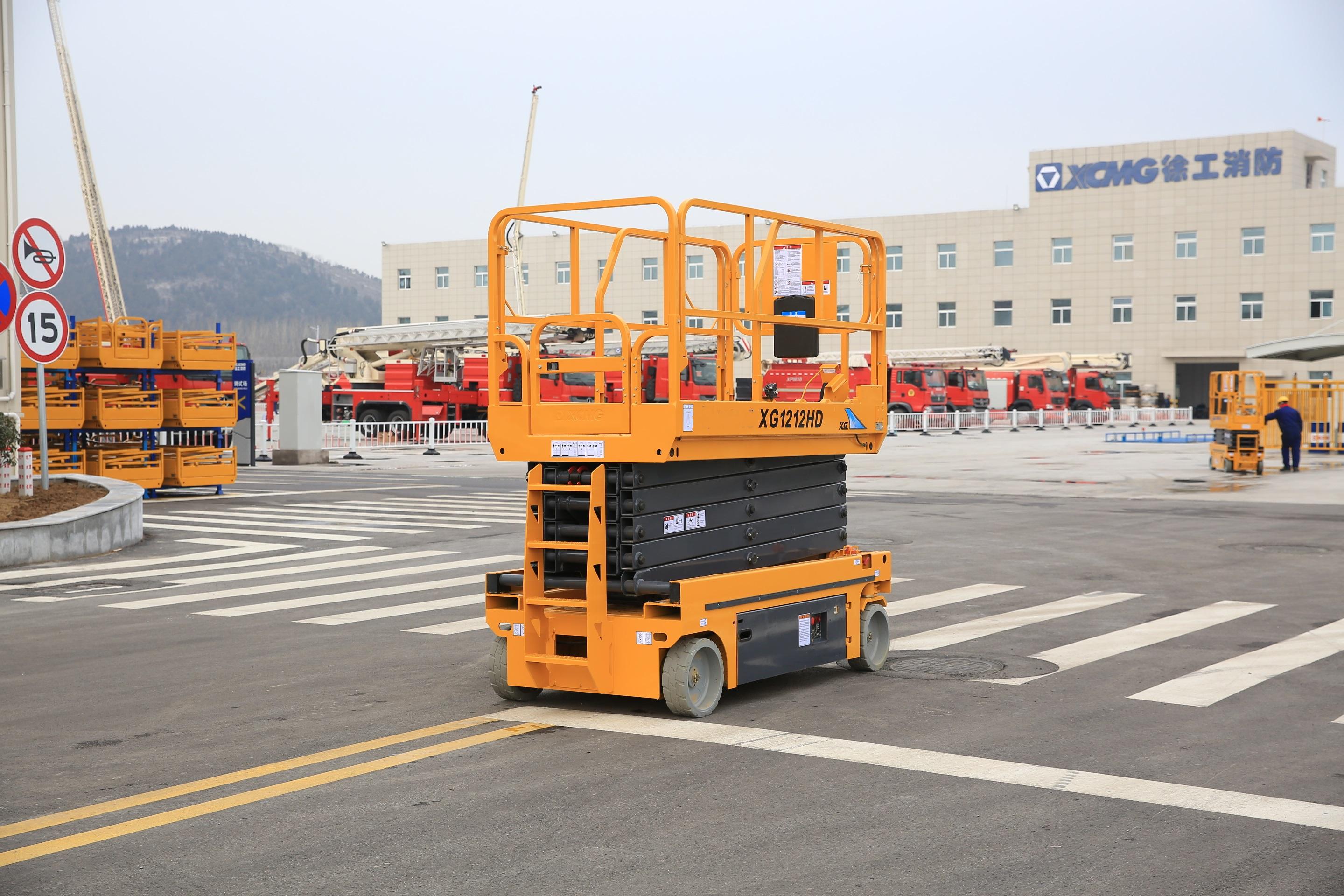

XG1212HD-Li is a heavy-duty self-propelled electric scissor lift powered by high-performance lithium battery. It delivers a maximum working height of 13.8m and a rated load of 320kg. Featuring reinforced steel scissor structure and large solid tires, this unit boasts superior stability and strong adaptability to indoor and slightly rough outdoor working conditions. With fast charging, long continuous working time and low maintenance requirements, it is fully CE certified. This model is an ideal solution for high-altitude operations in construction, warehouse logistics, commercial venues and municipal maintenance.
Product Advantages
High Reach & High Load: 13.8m maximum working height and 320kg rated capacity to meet diverse high-altitude and heavy-load operation needs.
Heavy-duty Reinforced Structure: Thickened steel frame and strengthened scissor arms ensure excellent rigidity and long service life.
Advanced Lithium Battery: Supports fast charging, ultra-long runtime and over 1000 charge-discharge cycles for prolonged service life.
Low Maintenance Design: No electrolyte inspection required, greatly cutting daily maintenance time and costs.
Strong Terrain Adaptability: Wear-resistant solid tires enable stable travel on flat ground and slightly uneven terrain.
Flexible Maneuverability: Compact body and flexible steering allow easy access through standard doors, elevators and narrow aisles.
Complete Safety Protection: Equipped with overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform.
Extendable Platform: 0.9m extended deck expands working area and improves operation efficiency.
Eco-friendly Performance: Pure electric drive with zero emission and low noise, suitable for long-hour continuous work.
Product Specification Table
Item | Specification |
Model | XG1212HD-Li |
Max. Working Height | 13.8 m |
Max. Platform Height | 11.8 m |
Rated Load Capacity | 320 kg |
Extended Platform Load | 120 kg |
Platform Size (L × W) | 1870 × 800 mm |
Extended Platform Length | 0.9 m |
Overall Dimension (L×W×H, Folded) | 2650 × 810 × 2450 mm |
Total Weight | 1960 kg |
Inner Turning Radius | 0 m |
Outer Turning Radius | 1.8 m |
Ground Clearance | 22 mm (Raised) / 72 mm (Stowed) |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 25 ~ 45 s |
Lowering Time | 32 ~ 45 s |
Battery Type | Lithium Battery |
Charging Time | 2 ~ 3 h |
Continuous Working Time | 8 ~ 10 h |
Certification | CE |
Application Scenarios
Construction Sites: Interior and exterior decoration, wall painting, electrical wiring and pipeline installation.
Warehouse & Logistics: High rack maintenance, inventory inspection and lighting repair in large warehouses.
Commercial Venues: Ceiling cleaning, lamp replacement and billboard installation in malls, hotels and exhibition centers.
Building Maintenance: Daily repair and upkeep for high-rise offices, residential buildings and public facilities.
Municipal Works: Street lamp maintenance, traffic sign installation and greenery trimming.
Event Layout: Stage setup, banner hanging and professional equipment installation for large exhibitions and conferences.
Operation Guide
1 Pre-operation Inspection
Check battery power level, tire condition and hydraulic oil volume.
Examine safety railings, extendable platform and locking pins to ensure firm connection.
Test emergency stop, tilt alarm and pothole protection devices for normal operation.
Clear site obstacles and confirm the working ground is flat, solid and within the slope limit.
2 Driving Operation
Turn the key switch to ON to start the machine.
Control forward and backward movement via joystick. Driving speed will be limited when the platform is lifted.
Steer gently. Do not make sharp turns or drive on slopes over 25% during elevated work.
3 Lifting & Lowering
Press the lift button to raise the platform; release the button to stop.
Press the lower button to descend. Keep the area below clear of personnel and obstacles.
Extend the auxiliary platform only after the main platform is fully lifted. Never exceed the rated load.
4 Safety Regulations
Overload is strictly prohibited: 320kg for main platform and 120kg for extended platform.
Do not travel on slopes exceeding 25% while the platform is elevated.
Operators must wear safety harness during high-altitude operation.
Fully lower and retract the platform before moving the lift.
5 Shutdown & Maintenance
Lower the platform completely and retract the extended deck.
Turn off the key switch and cut off the power supply.
Clean the machine body and check for loose parts or damage.
Charge the battery timely after use. For long-term storage, keep the battery power at around 80%.
Store the machine in a dry and ventilated area.
FAQ
Q1: What is the maximum working height?
A: The maximum working height is 13.8m, and the maximum platform height is 11.8m.
Q2: What are the advantages of the lithium battery?
A: It features fast charging, long continuous working time, long cycle life and nearly maintenance-free performance.
A: The extended platform can bear a maximum load of 120kg. Overload is forbidden.
Q4: How long does it take to fully charge the battery?
A: It only takes 2 to 3 hours for a full charge.
Q5: What safety features are equipped?
A: It is equipped with overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform.
Q6: How long can it work continuously after full charge?
A: It can work 8 to 10 hours continuously, depending on actual load and working conditions.
