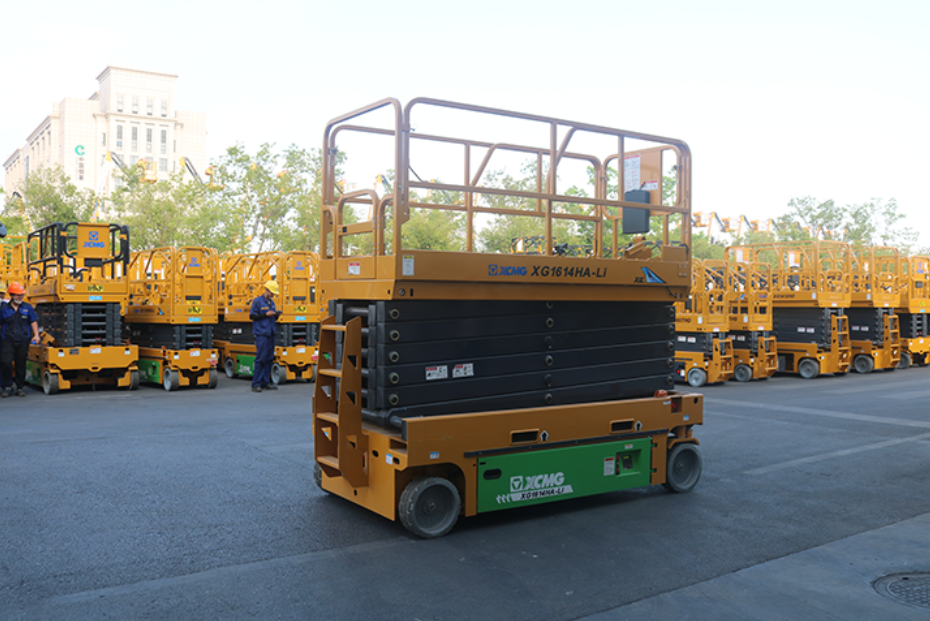

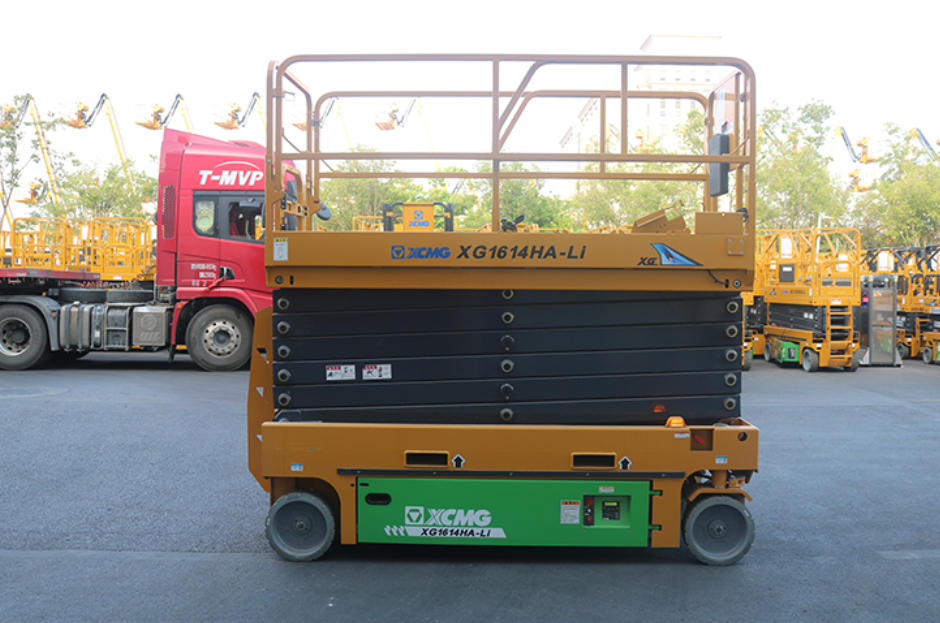

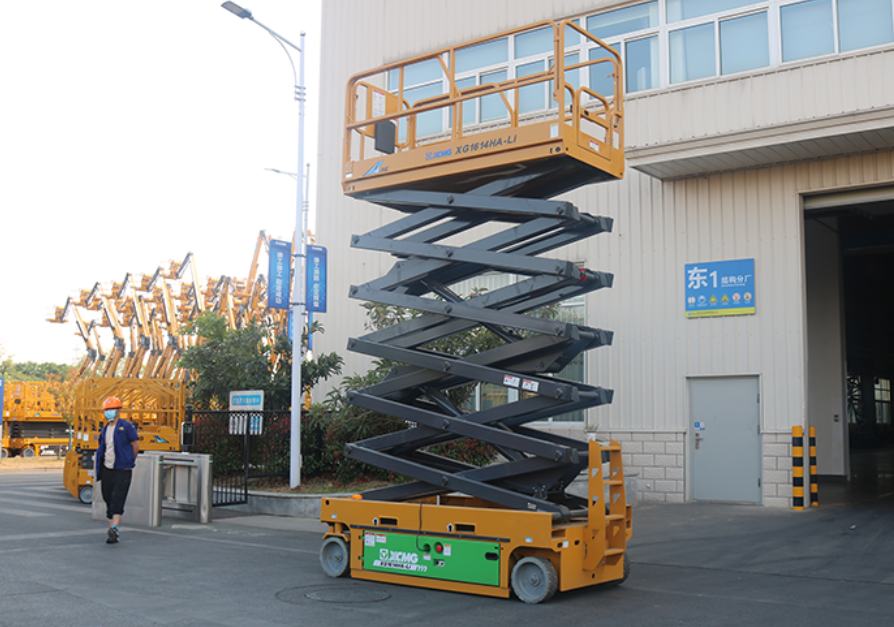

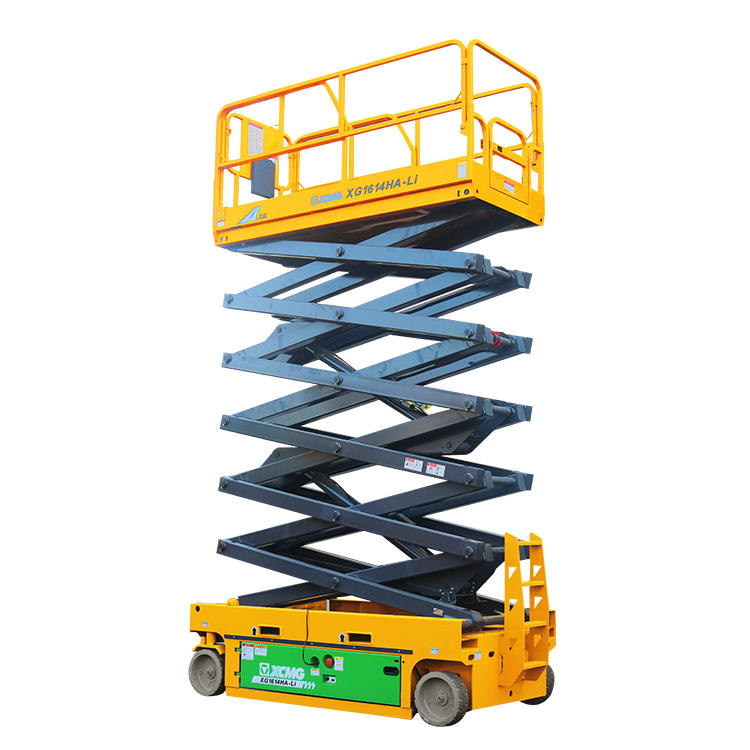

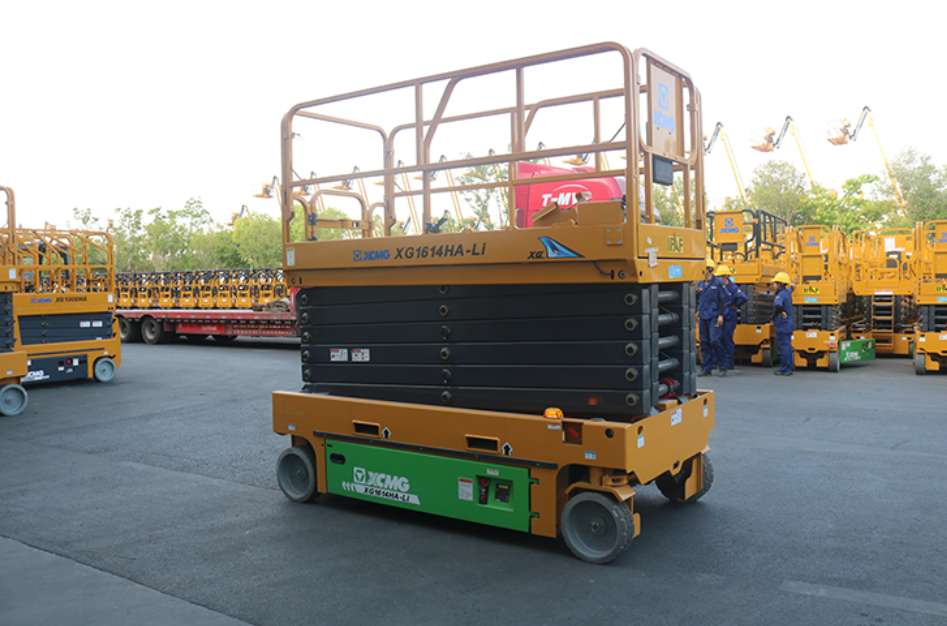

XG1614HA-Li
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The XG1614HA-Li is a compact scissor lift platform powered by lithium batteries, launched by a premier Chinese brand. Designed for elevated operations in confined indoor and outdoor spaces, it combines environmental friendliness, agility, and safety. Suitable for use in factories, airports, shopping centres, and office buildings, it navigates narrow passages with ease. Its pure electric drive makes it ideal for noise- and emission-sensitive environments such as hospitals, schools, and cleanrooms.
Product Advantage
Lightweight and compact design: Narrow chassis with zero internal turning radius, ideal for confined spaces in factories, shopping centres, hospitals, and office buildings.
Comprehensive safety features: Standard pit protection, tilt protection, and overload protection. Foldable platform guardrails facilitate transport.
High efficiency and low maintenance: Energy-efficient electric drive system delivers extended runtime. Modular components and standardised specifications minimise servicing costs.
Dual-scenario adaptability: Equally suited for indoor eco-friendly operations and outdoor light-duty tasks. Eliminates fuel dependency and prevents pollution in enclosed environments.
Technical Parameters
| Item | Unit | Parameter |
| Dimension of machine Length (without ladder) | mm | 2840 (2630) |
| Dimension of machine Width | mm | 1270 |
| Dimension of machine Height (platform folded) | mm | 2600 (2060) |
| Wheelbase | mm | 2240 |
| Wheel track | mm | 1123 |
| Min ground clearance (Pit protector ascending/descending) | mm | 100/20 |
| Dimension of working platform Length | mm | 2640 |
| Dimension of working platform Width | mm | 1120 |
| Dimension of working platform Height | mm | 1263 |
| Dimension of working platform Extension length of the auxiliary platform | mm | 900 |
| Centroid position of machine Horizontal distance to front shaft | mm | 1127 |
| Centroid position of machine Height of centroid | mm | 720 |
| Total mass of machine | kg | 3350 |
| Max. height of platform | m | 13.7 |
| Min. height of platform | m | 1.478 |
| Max working height | m | 15.7 |
| Min turning radius (inner wheel/outer wheel) | m | 0/2.65 |
| Rated load | kg | 230 |
| Payload of extended platform | kg | 115 |
| Lifting time | s | 65-82 |
| Lowering time | s | 61-80 |
| Drive speed(lowered) | km/h | 3.2 |
| Drive speed(elevated) | km/h | 0.8 |
| Max. gradeability | % | 25 |
| Tilt warning angle (side/forward and backward) | ° | 1.5/3 |
| Lifting / traveling motor Model | - | - |
| Lifting / traveling motor Rated power | kW | 4.5 |
| Lifting / traveling motor Manufacturer | - | - |
| Battery Model | - | T1275/6-EV-100 |
| Battery Voltage | v | 24 |
| Battery Capacity | Ah | 300 |
| Battery Manufacturer | - | Trojan/ Leoch |
| Tire models | - | Traceless and solid /381×127 |
Product Uses
1. Construction and Refurbishment (Most Common)
Interior: Office buildings / Hotels / Shopping centres – ceiling installations, pipework, lighting, fire safety systems, air conditioning installation and maintenance
Exterior: External wall coatings, curtain walls, doors and windows, advertising signage, roofing construction and maintenance
2. Warehousing and Logistics
High-bay shelving installation, stock management, inventory checks, maintenance
Logistics centre lighting, ventilation, surveillance, fire protection piping at height
3. Industrial Plants and Manufacturing
Production workshop equipment maintenance, piping/cable tray installation, overhead crane servicing, elevated lighting
Cleanrooms/electronics factories: Zero emissions, low noise, meeting environmental requirements
Steel structure workshops: Beam/column welding, purlin installation, roof waterproofing
4. Municipal & Public Infrastructure
Roads/bridges: Guardrail, streetlight, noise barrier, pier maintenance
Venues/stations: Sports arenas, high-speed rail stations, airports – ceiling, lighting, ventilation, signage maintenance
Schools/hospitals: Interior refurbishment, equipment servicing – low-noise, non-disruptive
5. Other High-Frequency Applications
Property maintenance: External wall cleaning, pipe unblocking, aerial facility inspections for residential complexes/industrial parks
Power/telecoms: Installation and maintenance of low-voltage lines, surveillance poles, base station antennas
Exhibitions/events: Temporary stage construction, lighting/sound systems, aerial decoration work.
Product Operate Guide
Entering the platform: Enter the platform smoothly. Be sure to fasten your seat belt and secure the hook of the seat belt to the designated safety hanging point on the platform (do not hang it on the guardrail or other places).
• Platform operation: On the platform console, hold down the "Drive" enable switch as well and use the proportional control handle.
◦ Rise: Pull the handle backward (or press the dedicated "Rise" button).
◦ Descent: Push the handle forward (or press the dedicated "Descent" button).
◦ Stop: Release the handle to stop the action.
• Movement and fine-tuning: After the platform is raised, the device can also be controlled by the handle to move slowly to achieve precise fine-tuning of the working position.
FAQ
A: "HA" usually stands for high-performance series, meaning that the product has been optimized in terms of drive, hydraulics and control, with stronger performance and a better experience. "Li" clearly indicates that the device uses lithium-ion batteries as its power source, which is the core difference between it and traditional lead-acid batteries or AC devices.
A: The main advantages include
• Longer service life: The cycle life of lithium batteries far exceeds that of lead-acid batteries, reaching over 3,000 times, with a lifespan approximately three times that of lead-acid batteries.
• Faster charging speed: Supports fast charging, usually fully charged in 3 to 4 hours, while lead-acid batteries take 8 to 10 hours.
• Higher efficiency: No memory effect, can be charged at any time, higher power utilization rate, and the working voltage remains stable throughout the process without power attenuation.
• Lower maintenance costs: Completely maintenance-free, no need to add electrolyte, no need for equalization charging, saving time and labor.
• More environmentally friendly and lightweight: With high energy density, it is lighter in weight and free of pollutants such as lead and acid.
A: Yes. This equipment features a good ground clearance of the chassis and driving capacity. Its maximum climbing slope is usually ≥25%, and it can adapt to most flat outdoor sites and slight slopes of indoor ground. But be sure to ensure that the ground is solid and flat, and pay attention to safety when driving.
A: With the original charger, it takes about 3 to 4 hours to fully charge. The battery life depends on the actual working conditions (such as load, frequency of rise and fall, driving distance, etc.). A full charge usually can support normal-intensity work for about 6 to 8 hours. It is recommended to recharge at any time during breaks at work.
• Charging: Use the original charger. It is recommended to charge it promptly after each use to avoid over-discharging.
The charging environment should be dry and well-ventilated.
Storage: If stored for a long time (more than one month), it is recommended to charge the battery to 60%-80% and recharge it to this range every three months. Store in a cool and dry place.
A: Lithium batteries have a long cycle life. Under normal use and maintenance, their designed lifespan can reach 5 to 8 years or even longer. Although the procurement cost of a single lithium battery is higher than that of lead-acid batteries, its extremely long service life and maintenance-free feature make its total life cycle cost much lower than that of lead-acid batteries, making it more economical.
