XGS22ACK-Li
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

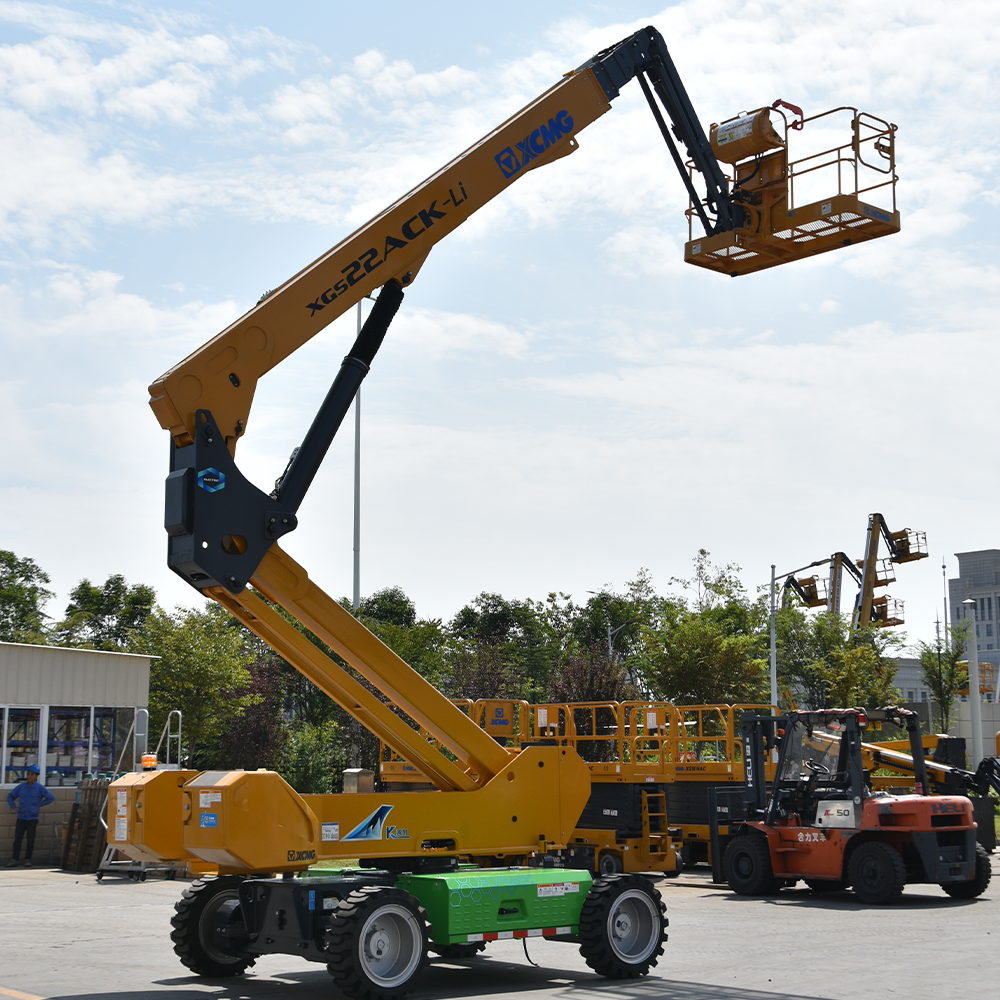

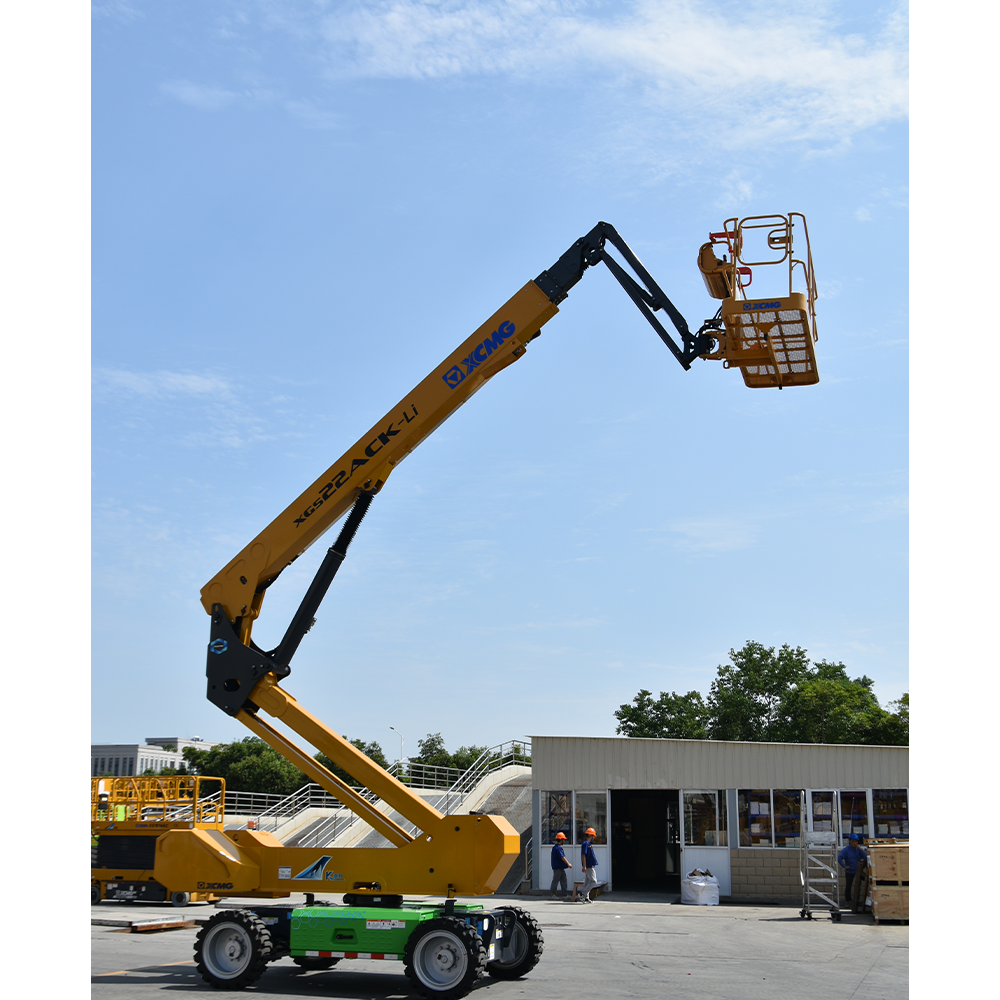

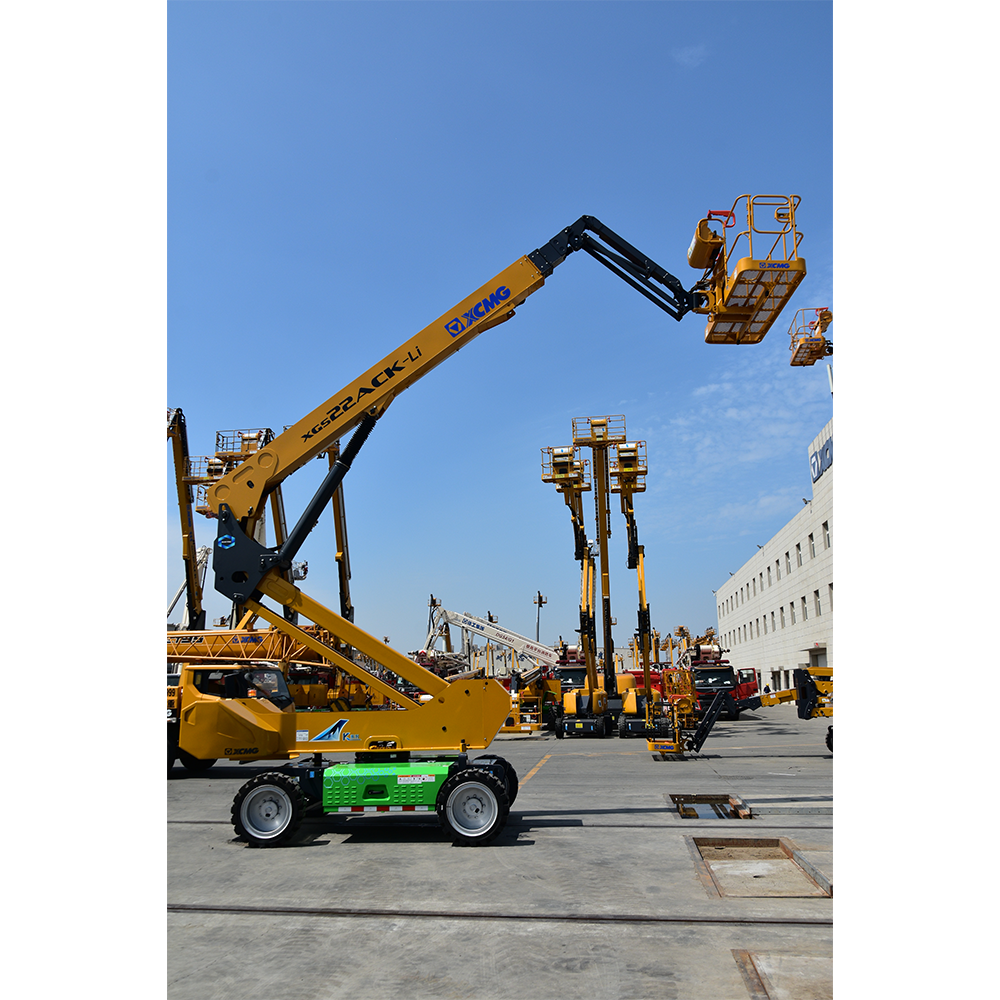

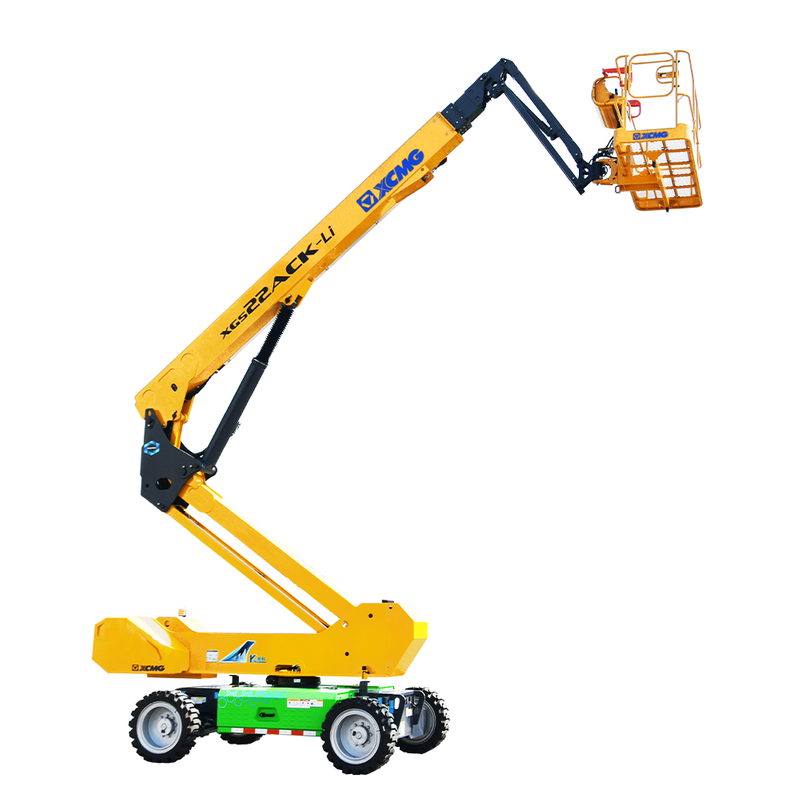

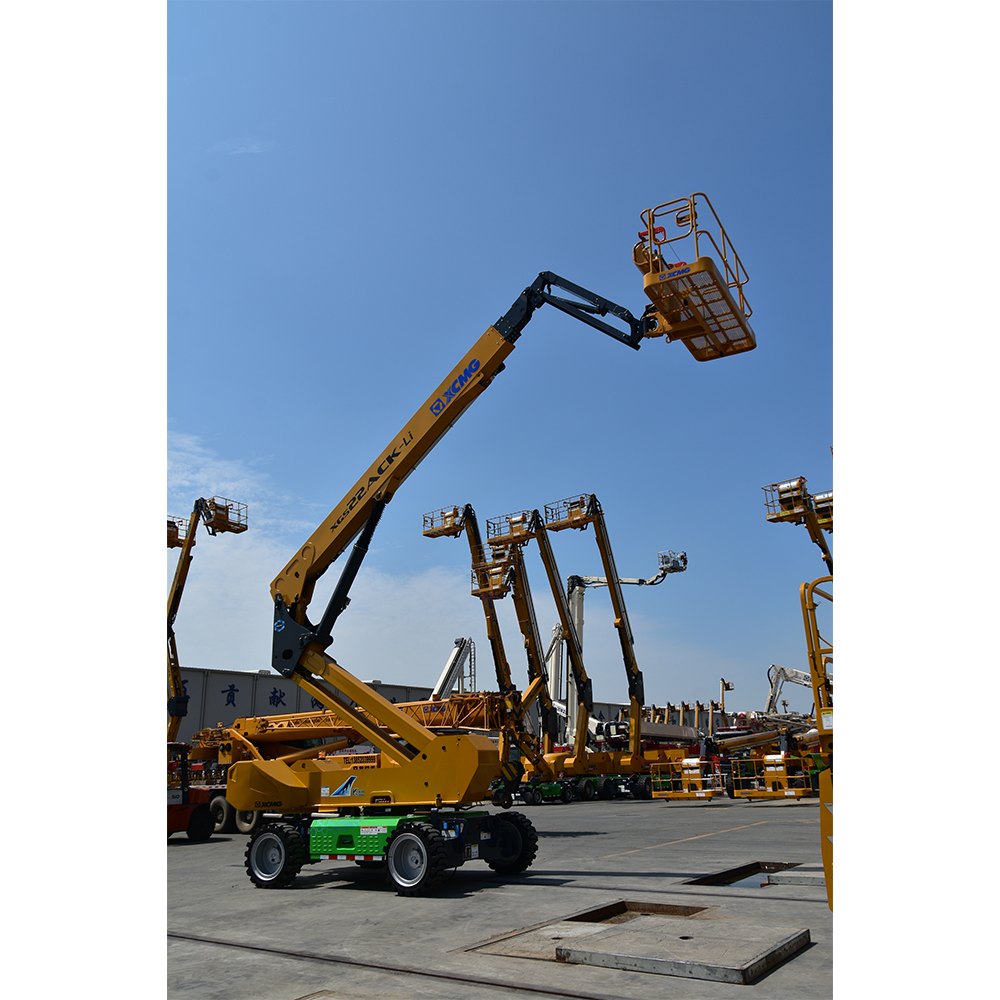

The XGS22ACK-Li is a new generation of electric scissor lift aerial work platform launched by XG in response to the demands of modern green construction and efficient operations. Its core feature is the adoption of an AC motor drive system and a large-capacity lithium battery as the power source, achieving zero emissions, low noise, high efficiency and long range.
Product Advantage
It adopts a high-efficiency AC motor system, featuring high energy conversion efficiency, stable and powerful power output, and excellent climbing and driving performance.
The large-capacity lithium battery has a long battery life and can usually support continuous operation under standard conditions for more than 8 hours, meeting the operation requirements for a whole day without the need for intermediate charging.
It supports fast charging technology, allowing for quick recharging during breaks, which greatly enhances the utilization rate of the equipment.
Equipped with an intelligent CAN bus control system, it can monitor the equipment status in real time and provide precise and intuitive fault diagnosis.
The proportional control handle is sensitive in operation and precise in control. The platform's lifting, lowering and traveling are all smooth and stable.
The multi-functional LCD screen can display real-time information such as battery level, hours and fault codes, providing a good human-machine interaction experience.
Technical Parameters
| a Length (stored, in operation) | mm | 9260 |
| Length (transport, jib folded down) | mm | 6790 |
| b Overall width | mm | 2490 |
| c Overall height | mm | 2720/3000（运输，短臂折下） |
| Length | mm | 2440 |
| Width | mm | 900 |
| Height | mm | 1150 |
| d Wheelbase | mm | 2500 |
| Maximum operating height | mm | 22900 |
| Maximum platform height | mm | 20900 |
| Maximum operating range | mm | 15400 |
| Maximum load-bearing weight | kg | 300(无限制)/460(限制) |
| Boom amplitude range | ° | -5°~ +75° |
| Turntable rotation angle | ° | 360°连续 |
| Turntable tail swing (stored) | mm | 1710 |
| Platform rotation angle | ° | 160° |
| Jib vertical rotation - up | ° | 70° |
| Jib vertical rotation - down | ° | 65° |
| Machine weight | kg | 10300 |
| Travel speed (stored) | km/h | 5 |
| Travel speed (raised or extended) | km/h | 0.6 |
| Minimum turning radius (outside) | m | 5.5 |
| Minimum turning radius (inside) | m | 3.5 |
| Minimum ground clearance | mm | 300 |
| Maximum gradeability (counterweight end up) | %（°） | 40% (22°) |
| Maximum gradeability (counterweight end down) | %（°） | 30% (17°) |
| Maximum lateral driving slope | %（°） | 25% (14°) |
| Tire specifications | 33x12-20/8.0 315/55D/20-18 | |
| Controls | 12V 直流比例控制 | |
| Battery specifications | V/Ah | 51.2/460 |
| Hydraulic tank capacity | L | 103 |
Product Uses
The construction of industrial plants and warehouses and the installation of equipment
Lighting installation, monitoring maintenance and decoration for large shopping malls and supermarkets
Maintenance operations for large venues such as airports, railway stations and stadiums
• Construction, exterior wall cleaning, and installation of glass curtain walls
• Special occasions such as film and television drama shooting and stage construction
Product Operate Guide
To operate the XG XGS22ACK-Li aerial work platform, one must first receive professional training. Before starting the operation, check whether the power supply, structure and emergency devices are normal. Choose a solid and flat ground. If necessary, extend the outriggers to level it. When operating, smoothly control the lifting and driving through the proportional control handle on the platform control box. Pay attention to observing the surrounding environment and avoid obstacles and high-voltage lines. Overloading is strictly prohibited on the platform. Workers must fasten their safety belts. After it's over, lower the platform to the lowest position, come to a complete stop and then cut off the power supply. Strictly abide by the provisions of the manual to ensure safe and efficient operation.
FAQ
A: It adopts a power combination of AC motor drive and lithium battery. Ac motors have stronger power, higher efficiency and are maintenance-free (no need to replace carbon brushes). Lithium batteries have the advantages of zero emissions, low noise, long battery life, support for fast charging and long lifespan.
A: When fully charged, it can usually operate for more than 8 hours in a standard state. Supports DC fast charging, and it can be fully charged in about 1.5 to 2 hours. It takes about 8 to 10 hours to use AC slow charging. It is recommended to use lunch breaks and other work breaks for fast charging, which can achieve continuous operation around the clock.
A: It is suitable for solid and flat indoor and outdoor floors, such as cement floors, asphalt floors, etc. Its climbing ability is ≥30%, capable of handling common slopes and slightly uneven roads. For uneven ground, it is essential to use the pit protection system (optional) to level the equipment to ensure safety.
A: It is equipped with multiple safety protections, including
• Tilt protection: Automatically alarm and stop action when the tilt exceeds the limit.
• Emergency descent device: Manual safe descent in case of sudden power failure.
• Emergency steering: Standby in case the main steering fails.
• Alarm devices and warning lights: Alert people around during operation.
• Anti-collision guardrails, safety rope hanging points, etc.
A: Daily pre-work checks must be conducted, including:
• Check for any deformation or cracks in the structure.
Check if the battery power is sufficient.
Test whether all control functions (lifting, walking, emergency stop) are normal.
• Check the wear condition of the tires/wheels.
• Confirm that the safety warning device is working properly.
A: Maintenance is relatively simple.
It mainly revolves around
• Cleaning: Keep the entire vehicle clean, especially the cylinders, sliders and outriggers.
• Inspection: Regularly check if the fasteners are loose and if the structure is damaged.
• Charging: Follow the lithium battery maintenance regulations. Do not discharge or charge. Keep an appropriate amount of power before long-term storage.
The AC motor is basically maintenance-free, saving a lot of work and costs.
